Description
HITECHLAM Inks are reverce printing lamination ink .It is Toluene And Ketone free ink system.
PRODUCT
- Machine : Roto Gravure Printing Machine.
- Ink system : Nitrocellulose based ink.

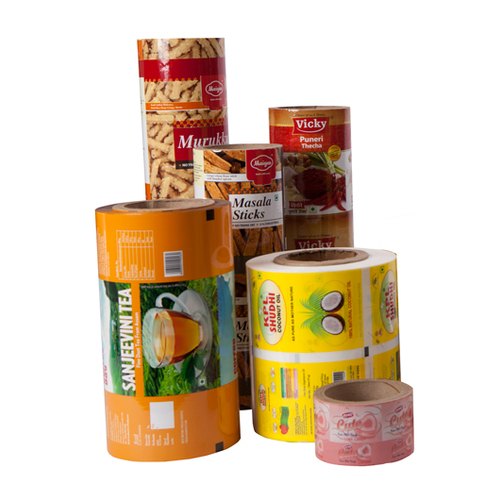

- End Use : Snack Wrappers, Biscuits, Chocolate Wrappers, Tea, Rice ,Suger, Coffee job and all types general purpose suitable.
Printing Substates
- Chemical Coated Pet ( Dyne level > 56 ).
- Treated Clear Bopp ( Dyne level > 38 & above).
- Pearlised Bopp ( Dyne level > 38 & above).
- LDPE clear & Opaque.
- Alluminium Foil.
- Chromo Coated Paper & Poster Paper.
Products Specification
- Excellent Printing Runnability
- Excellent Adhesion on above film.
- Excellent Bond strength .
- Excellent HR properties ( 150 dg/ 3 bar/1 sec).
- Excellent dot transfer & solvent release.
- After adding Wax Powder can use in Surface job.
- Speed 80 – 400 mtr/minutes
Lamination Adhesive
- Solvent less adhesive suitable for all kind of lamination job.
- Solvent based adhesive consult with Technical person .
Printing and Process
| CupUsed | DIN Cup4 | AFNOR Cup4 | Ford 4 Cup | Zahn 2 cup |
|---|---|---|---|---|
| Viscosity | 15-19 sec | 16-21 sec | 16-20 sec | 20-23 sec |
Dilution
Solvent and solvents blends used for dilution may need to be adjusted in accordance to printing conditions, namely printing process, speed, oven capability and graphics such as solid , lines,halftone and printing process.
Note : To use 5 to 10 % Retarder in the Process colors ( CYMK) during printing to achieve halftone dots.
Reducer Recommendation
- Standard Reducer : Ethyl Acetate 100 %
- Medium Reducer : Ethyl Acetate 80 % + IPA 20%
- Slow Reducer : Methoxy Porpanol or Oxitol or Ethoxy.
Shelf Life
Above product shelf life is upto 1 years but should be below
- Storage in tightly closed containers
- No ad mixtures.
- Storage the ink in 25 dg temp
Note : Kindly feel free contact to our Technical person incase need more information
